9327 1-GHz amplifier and timing discriminator

Survive in development, continuously optimize, and promote rapid development of enterprises with good reputation and scientific management

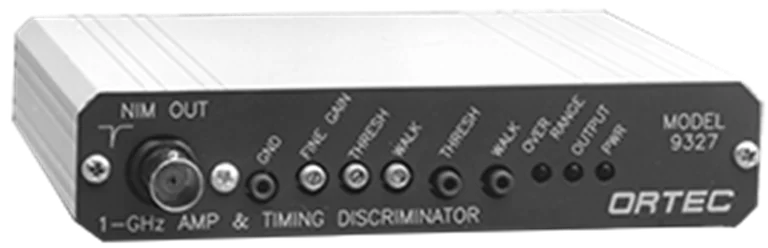

9327 1-GHz amplifier and timing discriminator image

9327 1-GHz amplifier and timing discriminator

Product model:

Brief description:Picosecond Timing Microchannel Plate Detector Microchannel Plate PMT Fast Photodiode Fast Photomultiplier Tube 1-GHz Amplifier and Timing Discriminator Internally Matched for Minimal Wander and Timing Jitter Wander is typical over the first 90% of full scale Jitter is typical at 50% of full scale Optimized for pulse widths from 250ps to 1ns

  • Manufacturer strength

    Manufacturer Strength
  • Valid warranty

    Valid Warranty
  • Quality assurance

    Quality Assurance

Products

PRODUCT CATEGORY

Detailed introduction

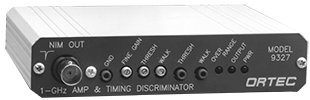

ORTEC 9327 1 GHz Amplifier and Timing Discriminator
  • Picosecond timing for mV signals from the following instruments
  • Microchannel Plate Detector
    Microchannel plate PMT
    fast photodiode
    fast photomultiplier tube
  • 1-GHz amplifier and timing discriminator are internally matched for minimum wander and timing jitter
  • Swim typically <±40 ps over first 90% of full scale
  • Jitter <20 ps FWHM at 50% of full scale
  • Optimized for pulse widths from 250 ps to 1 ns; accepts pulses up to 5 ns in width
  • Selectable input pulse height range: 0 to -30 mV, or 0 to -150 mV full scale
  • 2:1 trim gain control
  • Over-range LED for precise gain adjustment without an oscilloscope
  • information +

    • Download link 9327 Brochure
    • Download link 9327 Brochure (A4)
    • Download link 9327 manual
  • More information +


    The Model 9327 1 GHz Amplifier and Timing Discriminator is compact and about the size of a preamplifier and integrates two functions typically required for picosecond timing of ultrafast detectors. It is ideal for fluorescence/phosphorescence lifetime spectroscopy measurements, time-of-flight spectroscopy and lidar applications. Model 9327 is optimized for use with millivolt signals generated by microchannel plate detectors, microchannel plate photomultiplier tubes, fast photodiodes, and fast discrete dynode photomultiplier tubes. The compact construction allows for extremely short cable connections between detectors and amplifiers, thus avoiding distortion of sub-nanosecond signals from these detectors. The timing discriminator output logic pulses can be transmitted over longer cables to the rest of the time spectrometer without affecting picosecond time resolution.

    The amplifier provides 1 GHz bandwidth to minimize the effects of noise and rise time on timing jitter on detector pulses as narrow as 250 ps. The 50 Ω amplifier inputs include diode clamps to protect against overload pulses. Jumpers mounted on the PC board control coarse gain to produce two full-scale input pulse amplitude ranges: 0 to -30 mV and 0 to -150 mV. Trim gain control changes gain over a nominal 2:1 range. An oscilloscope is not required to adjust the gain because the over-range LED indicates when the pulse amplitude exceeds the amplifier's full-scale limit. Detector and/or amplifier gain can be increased until the overrange LED lights up, then decreased until the LED goes off. This ensures that the pulse utilizes the entire linear range of the amplifier.

    The timing discriminator uses zero-crossing technology to handle pulse widths from 250 ps to 5 ns without the need to adjust pulse shaping cables. Zero-crossing technology achieves minimal timing jitter and wander as a function of pulse amplitude. It is optimized for sub-nanosecond pulse widths but can accommodate pulses up to 5 ns in width. When using a 300 ps input pulse width, the offset of the timing output (wandering) as a function of pulse amplitude is typically less than ±40 ps over the first 90% of full scale. Since the effect of 9327 is negligible, the detector is usually the main source of timing jitter. Model 9327 includes a noise discriminator that is adjustable over a major portion of the full scale range. With the detector event source turned off, the discriminator threshold can be adjusted before the associated LED lights up due to noise triggering. Then, adjust the threshold until the LED just goes out, ensuring that the discriminator is not triggered by noise.

    Model 9327 provides two fast negative NIM logic signals and is suitable for operating other timing instruments with picosecond time resolution. It also has a 100 ns wide TTL output for counting applications. In addition to its excellent performance in high-resolution time spectrum measurements, the Model 9327 can be used in single photon and single ion counting applications.

    A 3-meter long self-contained power cord terminated in a 9-pin D-type connector is used to power the device. Power can be obtained from the 4002P Portable Power Supply, the 4003 Preamplifier Power Output Module, or the mating connector on any ORTEC Spectrum amplifier. Alternatively, a DC source in the range of +12 to +15 V at 350 mA can be connected to the designated pins on the power connector.

  • Specifications +


    Performance
    Unless otherwise stated, in0to-30 mVPerformance is measured over the input range.

    input range

    0to-30 mV(full scale) or0to-150 mV(full scale), selectable via circuit board jumpers.

    Equivalent input noise

    0to-30 mVwithin range<100μV rms。

    Time transfer (swimming)

    before full scale90% range, the offset of the timing output as a function of pulse amplitude is typically<±40 ps. Includes amplifier and timing discriminator contributions. The input pulse width is300 ps FWHMTake measurements when.

    Timing jitter

    Pulse amplitude is full scale50% when<20 ps FWHM. Measurements were made using the same pulse shape listed under time shift.

    Pulse pair resolution

    in rapid negativeNIMoutput terminal,<10 ns。

    Operating temperature range

    0to50°C。

    Transmission Delay Temperature Sensitivity

    from0Arrive50°C,<10 ps/°C. Using pulse shapes listed under time shift, at full scale50Measured at %.


    input and output

    Input
    (amplifier)

    rear panelSMAConnector for negative input pulses. accept250 psto5 ns FWHMpulse width. Optimized for sub-nanosecond pulse widths. The input range is jumper selectable as0Arrive-30 mVor0Arrive-150 mV. Input impedance:50 Ω AC,<1000 Ω DC ground. Diode clamps provide ±2 V dcoverload protection, or for50 nswide pulses, the duty cycle<1± is available when %10 V。

    amplifier output

    rear panelSMAThe test points are suitable for termination via50 Ω50 Ω coaxial cable for oscilloscope monitoring. Test point output impedance:1000 Ω. The amplifier is internally connected to drive a timing discriminator input in parallel with the output monitor.

    NIMOutput

    Front and rear panelsBNCThe connector provides two independent fast negativeNIMOutput logic pulses. The nominal value of the output amplitude is-800 mVArrive50Ω load. The nominal pulse width is4 ns。

    TTLOutput

    rear panelBNCThe connector is provided by a quick negativeNIMThe output triggers the positiveTTLpulse.TTLpulsed100 nsThe width is not updated. Output impedance:<50 Ω, protected against short circuit.

    Thresh

    THRESHFront panel test point jack next to the control allows connection of a voltmeter for monitoring threshold settings for readjustability. The output impedance is1000 Ω. The nominal output range is-10 mVto-1 V。

    swim

    The front panel test point jack next to the swim adjustment control is used to monitor the swim (time shift) adjustment process. See the Swimming section under Controls and Indicators.

    GND

    Front panel test point jack for connecting the voltmeter's ground wire.


    Controls and lights

    input range
    (coarse gain adjustment)

    Circuit board jumpers near the amplifier input are optional0to-30 mVor0to-150 mVinput range.

    Fine-tune gain

    front panel15Turn screwdriver adjustment control for calibrating full-scale sensitivity. Can be used as a fine-tuning gain control with approx.2:1gain adjustment range.

    Thresh

    front panel15Turn screwdriver adjustment control for setting the input discriminator threshold. Available at full scale<2% to>50Adjust within % range.THRESHTest point jack allows connection of a voltmeter to monitor settings.

    swim

    front panel15Turn screwdriver trim control for minimizing time shift as a function of input pulse amplitude. Available at approximately ±150 mVadjusted within the range. The swimming test jack can pass<100 The output impedance of Ω monitors the actual voltage setting.

    outputLED

    front panelLEDFlashes with each output pulse to indicate valid triggering. Used to set the threshold above the noise level.

    Over rangeLED

    When the preamplifier pulse amplitude exceeds full scale, the front panelLEDwill flash. Used during detector gain adjustment to avoid overloading and pulse amplitude.

    PWR LED

    front panelLEDUsed to indicate when the device is powered on.


    electrical and mechanical

    Required power supply

    9327through a3meters long (9ft.) of its own power cord, which is terminated with a9needleDPreamp power connector. This connector is compatible withORTEC 4003、4002Pmodel or mostORTECCompatible with the preamp power connector on the Spectrum amplifier. The required power supply is350 mA,+12to+15 V(pin4) and ground (pin1and2)。

    weight

    Net weight 0.48Kilogram (1.1pounds).Shipping weight 1.1Kilogram (2.5pounds).

    Size

    approx.3.3cm×12.5cm×13.5cm
    (1.3inches×4.9inches×5.3inches).


  • Ordering information +


    Model

    Description

    927

    1-GHzAmplifiers and Timing Discriminators


    Recommended cable accessories:

    SMA58-0.15

    RG-58A(50Ω) coaxial cable withSMAconnector, long0.15meters

    SMA/BNC

    SMAturnBNCAdapter with male connectorSMAand female headBNC

    BNC/SMA

    BNCturnSMAAdapter with male connectorBNCand female headSMA

    C-25-12

    RG-58A/U(50Ω) coaxial cable withBNCconnector, long3.7meters(12feet)
