RADEAGLE, the handheld radioisotope identification instrument

Product model:

Brief description:RADEAGLE combines large-area, high-sensitivity crystals with smart algorithms to quickly, accurately, and simultaneously detect and identify four or more isotopes, typically in 30 seconds

Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance

Product consultation

Contact

Products

PRODUCT CATEGORY

Detailed introduction

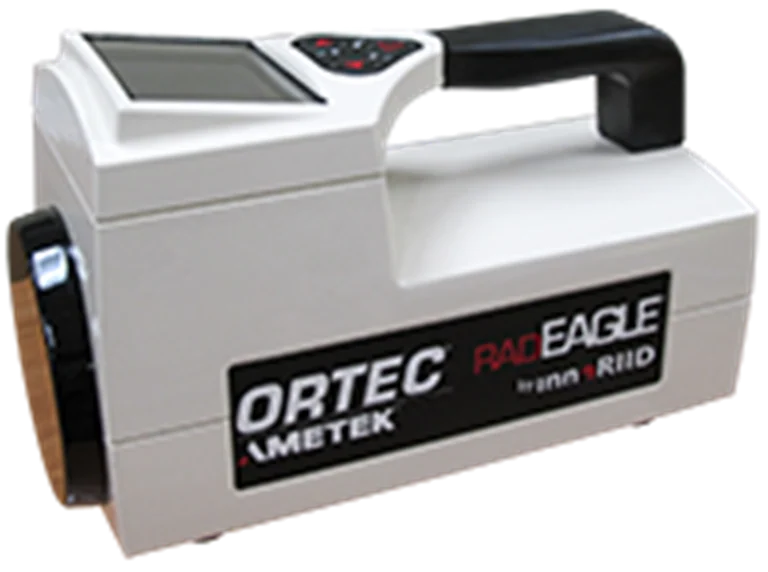

RADEAGLE State-of-the-Art Hand-Held, NaI Radioisotope Identification Device

RADEAGLE combines large-area, high-sensitivity crystals with intelligent algorithms to quickly, accurately, and simultaneously detect and identify four or more isotopes, typically within 30 seconds.
RADEAGLE complies with ANSI 42.34 standards and features an intuitive, clear, easy-to-use user interface and various alert functions.
Supports a variety of scintillation crystals, including NaI(Tl), CeBr3, and LaBr3(Ce), providing optimized instrument performance in a variety of applications.
RADEAGLE adopts our mature technology in detection and identification algorithms and advanced hardware, electronic self-learning and software systems, and is a handheld RIID.

information +
- Radeagle brochure
- Radeagle Brochure (A4)
- Radeagle Manual
More information +
RADEAGLE is a handheld radioisotope identification device (RIID) with unprecedented identification speed and accuracy.

Main customers and applications

First Responders and Emergency Management

customs and border protection

security and military power

nuclear safeguards

Environmental management and cleanup

Nuclear medicine and scientific research institutions

Scrap and Recycling

Smart Algorithms - Speed and Accuracy

RADEAGLE's algorithm is unique and uses neural networks to create multi-intelligence systems. The multi-intelligence system in turn uses learning algorithms to adapt the reference data to the characteristics of the detector's sensors. While continuously measuring background radiation, this "neurospectral brain" provides the speed and accuracy to detect and identify more than 67 nuclides, far exceeding the requirements specified by ANSI 42.34.

operating mode
RADEAGLE has five basic operating modes: dose rate, detection, simple identification, spectrum measurement and advanced mode. These five simple modes provide users with comprehensive system control, ranging from fast and accurate identification to extensive spectral analysis to expert system configuration.

application-centric approach
A major advantage of the RADEAGLE algorithm is that it can be optimized for multiple practical applications. Through extensive simulation, validation and refinement of real-world experience, RADEAGLE's performance is tuned and optimized for critical isotopes relevant to SNM in the nuclear safety and security market, NORM and IND for environmental and industrial applications, and MED for nuclear medicine. The waterproof NaI model also supports underwater measurements.

RADEAGLE AQUA

IP 68

Diving is allowed up to 15 meters

Tested and proven ID algorithm includes special settings to compensate for attenuation and scattering in water

floating in water

Durable and suitable for military use

Bright yellow color for easy positioning in water

Suitable for marine environments - resistant to salt spray corrosion

Specifications +

Specifications common to all models

radioactive properties

Energy range/MCA	11 keV to 3 MeV / 2048 channels
calibration source	Natural background, optional embedded calibration source.
nuclide library	Default isotope: ^110mAg, ²⁴¹Am, ¹³³Ba, ²⁰⁷Bi, ¹⁰⁹Cd, ²⁵²Cf (requires neutron detection), ⁵⁷Co, ⁶⁰Co, ⁵¹Cr, ¹³⁴Cs, ¹³⁷Cs, ¹⁵²Eu, ⁶⁸Ga, ¹²³I, ¹²⁵I, ¹³¹I, ¹¹¹In, ⁴⁰K, ⁵⁴Mn, ⁹⁹Mo2, ²²Na, ²³⁷Np, ²³⁸Pu, ²³⁹Pu, (²⁴⁰Pu, ²⁴¹Pu as part of compositions) ²²⁶Ra, ⁷⁵Se, ^99mTc, ²³²Th, ²⁰¹Tl, ²³³U, ²³⁵U, ²³⁸U Optional isotopes (contact factory): ^109mAg, ¹⁹⁸Au, ^135mBa, ¹⁴⁰Ba, ²¹³Bi, ¹¹⁶Cd, ⁵⁸Co, ¹³⁹Ce, ¹⁴¹Ce, ¹⁴⁴Ce, ¹³¹Cs, ⁶⁴Cu, ⁶⁷Cu, ¹⁶⁵Dy, ¹⁸F, ⁵⁹Fe, ⁶⁷Ga, ⁶⁸Ge, ^166mHo, ¹²⁴I, ¹³²I, ¹³³I, ¹⁹⁴Ir, ⁴²K, ^81mKr, ¹³⁸La, ¹⁴⁰La, ¹⁷³Lu, ¹⁷⁴Lu, ¹⁷⁶Lu, ¹⁷⁷Lu, ^177mLu, ⁵⁶Mn, ²⁴Na, ⁹⁵Nb, ⁹⁶Nb, ¹⁴⁷Nd, ²¹²Pb, ¹⁰³Pd, ¹⁴⁴Pr, ⁸²Rb, ¹⁸⁶Re, ¹⁸⁸Re, ¹⁰⁶Rh, ¹⁰³Ru, ¹⁰⁶Ru, ¹⁵³Sm, ¹¹³Sn, ⁸²Sr, ⁸⁹Sr, ⁹⁰Sr, ¹³²Te, ²²⁸Th, ⁴⁴Ti, ²⁰²Tl, ²⁰⁴Tl, ²³²U, ²³⁷U, ¹⁸⁷W, ^131mXe, ¹³³Xe, ^133mXe, ¹³⁵Xe, ⁸⁸Y, ⁹⁰Y, ¹⁶⁹Yb, ¹⁷⁷Yb, ⁶⁵Zn, ⁹⁵Zr
Nuclide category	Special nuclear materials (SNM), naturally occurring radioactive materials (NORM), industrial nuclides (IND) or medical sources (MED)

Physics

Size	248mm x 115mm x 152mm (9.8" x 4.5" x 6.0")
show	640 x 480, 89 mm (3.5 inches) transflective color TFT
battery	Rechargeable AA NiMH battery pack, AA NiMH or alkaline auxiliary battery pack
Operation run time	Standard battery pack >8 hours

environment

working temperature	–20 °C to +50 °C (–4 °F to +122 °F )
relative humidity	10% – 90%, non-condensing
protection level	IP65, for 3SGA and 3SGA-H models, allows diving to 15 meters

Embedded system

memory	>16 GB (1,000,000 spectra)
CPU speed	1 GHz
File format	ANSI N42.42, SPE (IAEA)
connect	USB, WiFi, GPS (optional)

Software

operating system

Microsoft Windows (XP, Vista, 7, 8, 10), MAC OS X Yosemite, Linux (tested with Ubuntu)

Model specific specifications

Model	Detector type	Detector size	PMT	GM	He3	Resolution @ 662 keV at ambient room temperature ¹³⁷Cs at ambient room temp	Sensitivity cps/µSv/h @ 662 keV ¹³⁷Cs	Detector dose rate range µSv/h	GM dose rate range up to Sv/h	Weight (g)
RADEAGLE-3SG	NaI(Tl)	76.2x25.4mm (3x1in)	3 inches	x		≤7.2%	>2500	0.01–200	1	~2620
RADEAGLE-3SG-H	NaI(Tl)	76.2x25.4mm (3x1in)	3”	x	x	≤7.2%	>2500	0.01–200	1	~2720
RADEAGLE-3SGA	NaI(Tl)	76.2x25.4mm (3x1in)	3 inches	x		≤7.2%	>2500	0.01–200	1	~2620
RADEAGLE-3SGA-H	NaI(Tl)	76.2x25.4mm (3x1in)	3 inches	x	x	≤7.2%	>2500	0.01–200	1	~2720
RADEAGLE-2CG	CeBr3	50.8x25.4 mm (2x1 inch)	3 inches	x		≤4.0%	>1600	0.01–300	1	~2200
RADEAGLE-2CG-H	CeBr3	50.8x25.4 mm (2x1 inch)	3 inches	x	x	≤4.0%	>1600	0.01–300	1	~2620
RADEAGLE-3CG	CeBr3	76.2x20.3 mm (3x0.8 inches)	3 inches	x		≤4.0%	>2500	0.01–200	1	~2620
RADEAGLE-3CG-H	CeBr3	76.2x20.3 mm (3x0.8 inches)	3 inches	x	x	≤4.0%	>2500	0.01–200	1	~2720
RADEAGLE-2LG	LaBr3(Ce)	50.8x25.4 mm (2x1 inch)	3 inches;	x		≤3.0%	>1600	0.01–300	1	~2250
RADEAGLE-2LG-H	LaBr3(Ce)	50.8x25.4 mm (2x1 inch)	3 inches	x	x	≤3.0%	>1600	0.01–300	1	~2250

Ordering information +

Model	Description
RADEAGLE-3SG	bring3x1 NaI（Tl) detector andGMtube gamma handheldRIID。
RADEAGLE-3SG-ES	Gamma handheld RIID with 3x1 NaI(Tl) detector and GM tube. Built-in scale source.
RADEAGLE-3SG-GPS	bring3x1 NaI（Tl) detector,GMGuan HeGPSGamma handheldRIID。
RADEAGLE-3SG-GPS-ES	Gamma handheld RIID with 3x1 NaI(Tl) detector, GM tube and GPS. Built-in scale source.
RADEAGLE-3SG-H	bring3x1 NaI（Tl) detector,GMGuan HeHe-3detector gamma/neutron handheldRIID。
RADEAGLE-3SG-H-ES	Gamma/neutron handheld RIID with 3x1 NaI(Tl) detector, GM tube and He-3 detector. Built-in scale source.
RADEAGLE-3SG-H-GPS	bring3x1 NaI（Tl) detector,GMtube,He-3detector andGPSgamma/neutron handheldRIID。
RADEAGLE-3SG-H-GPS-ES	Gamma/neutron handheld RIID with 3x1 NaI(Tl) detector, GM tube, He-3 detector and GPS. Built-in scale source.
RADEAGLE-3SGA	bring3x1 NaI（Tl) detector,GMGamma handheld with tube and underwater optionsRIID。
RADEAGLE-3SGA-ES	Gamma handheld RIID with 3x1 NaI(Tl) detector, GM tube and underwater option. Built-in scale source.
RADEAGLE-3SGA-GPS	bring3x1 NaI（Tl) detector,GMtubes, subsea options andGPSGamma handheldRIID。
RADEAGLE-3SGA-GPS-ES	Gamma handheld RIID with 3x1 NaI(Tl) detector, GM tube, underwater option and GPS. Built-in scale source.
RADEAGLE-3SGA-H	bring3x1 NaI（Tl) detector,GMtube,He-3Gamma for detectors and underwater options/neutron handheldRIID。
RADEAGLE-3SGA-H-ES	Gamma/neutron handheld RIID with 3x1 NaI(Tl) detector, GM tube, He-3 detector and underwater option. Built-in scale source.
RADEAGLE-3SGA-H-GPS	bring3x1 NaI（Tl) detector,GMtube,He-3detectors, underwater options andGPSgamma/neutron handheldRIID。
RADEAGLE-3SGA-H-GPS-ES	Gamma/neutron handheld RIID with 3x1 NaI(Tl) detector, GM tube, He-3 detector, underwater option and GPS. Built-in scale source.
RADEAGLE-2CG	bring2x1 CeBr3detector andGMtube gamma handheldRIID。
RADEAGLE-2CG-ES	Gamma handheld RIID with 2x1 CeBr3 detector and GM tube. Built-in scale source.
RADEAGLE-2CG-GPS	bring2x1 CeBr3detector,GMGuan HeGPSGamma handheldRIID。
RADEAGLE-2CG-GPS-ES	Gamma handheld RIID with 2x1 CeBr3 detector, GM tube and GPS. Built-in scale source.
RADEAGLE-2CG-H	bring2x1 CeBr3detector,GMGuan HeHe-3detector gamma/neutron handheldRIID。
RADEAGLE-2CG-H-ES	Gamma/neutron handheld RIID with 2x1 CeBr3 detector, GM tube and He-3 detector. Built-in scale source.
RADEAGLE-2CG-H-GPS	bring2x1 CeBr3detector,GMtube,He-3detector andGPSgamma/neutron handheldRIID。
RADEAGLE-2CG-H-GPS-ES	Gamma/neutron handheld RIID with 2x1 CeBr3 detector, GM tube, He-3 detector and GPS. Built-in scale source.
RADEAGLE-3CG	bring3x0.8 CeBr3detector andGMtube gamma handheldRIID。
RADEAGLE-3CG-ES	Gamma handheld RIID with 3x0.8 CeBr3 detector and GM tube. Built-in scale source.
RADEAGLE-3CG-GPS	bring3x0.8 CeBr3detector,GMGuan HeGPSGamma handheldRIID。
RADEAGLE-3CG-GPS-ES	Gamma handheld RIID with 3x0.8 CeBr3 detector, GM tube and GPS. Built-in scale source.
RADEAGLE-3CG-H	bring3x0.8 CeBr3detector,GMGuan HeHe-3detector gamma/neutron handheldRIID。
RADEAGLE-3CG-H-ES	Gamma/neutron handheld RIID with 3x0.8 CeBr3 detector, GM tube and He-3 detector. Built-in scale source.
RADEAGLE-3CG-H-GPS	bring3x0.8 CeBr3detector,GMtube,He-3detector andGPSgamma/neutron handheldRIID。
RADEAGLE-3CG-H-GPS-ES	Gamma/neutron handheld RIID with 3x0.8 CeBr3 detector, GM tube, He-3 detector and GPS. Built-in scale source.
RADEAGLE-2LG	bring2x1 LaBr3(Ce)detector andGMtube gamma handheldRIID。
RADEAGLE-2LG-GPS	bring2x1 LaBr3(Ce)detector,GMGuan HeGPSGamma handheldRIID。
RADEAGLE-2LG-H	bring2x1 LaBr3(Ce)detector,GMGuan HeHe-3detector gamma/neutron handheldRIID。
RADEAGLE-2LG-H-GPS	bring2x1 LaBr3(Ce)detector,GMtube,He-3detector andGPSgamma/neutron handheldRIID。
Accessories
RE-AP009-1	Battery pack with batteries (spare)
RE-AP009-2	Battery pack without batteries (battery holder)
RE-CA019	automatic power adapter,12 V
RE-CC022	suitcase
RE-CM020	charger module
RE-HB021	Carry-on holster with strap
