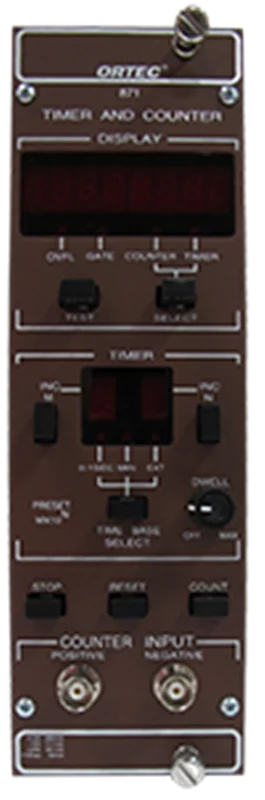

871 timers and counters image

871 timers and counters

Product model:

Brief description:8-bit decimal presettable timers and counters 25MHz positive or negative input count rate Crystal controlled clock Automatic recycle time control The ORTEC Model 871 is a non-printing timer and counter that can be used in any system as a counter and presettable timer, timer and presettable counter, or as two counters

  • Manufacturer strength

    Manufacturer Strength
  • Valid warranty

    Valid Warranty
  • Quality assurance

    Quality Assurance

Products

PRODUCT CATEGORY

Detailed introduction

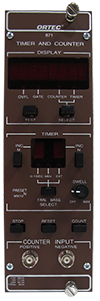

ORTEC 871 Timer and Counter
  • 8-digit decimal presettable timers and counters
  • 25 MHz positive or negative input count rate
  • crystal controlled clock
  • Automatic recirculation time control

The ORTEC Model 871 is a non-printing timer and counter that can be used in any system as a counter and presettable timer, a timer and presettable counter, or as two counters. Integrated and hybrid circuits combined with an 8-digit light-emitting diode (LED) display provide excellent operational reliability at a very economical cost.
  • information +

    • Download link 871 Brochure
    • Download link 871 Brochure (A4)
    • Download link 871 Manual
  • More information +


    A 1 MHz crystal oscillator serves as the standard clock for this device, providing much higher timing accuracy than the timer when using line frequency. The 8-digit decimal LED display is a high-definition count or time display whose functionality is further enhanced by suppressing leading zeros, minimizing the possibility of reading errors. An LED below the 8-digit display is used to indicate whether the reading is for a counter or timer, and a button below the display allows the user to toggle between counter or timer readings. LED numbers are also used to indicate preset values ​​for the M X 10N format.

    Display test is activated by pressing the front panel display test switch, which will illuminate all "8s", providing a test for all segments of each display.

    Both parts of the Type 871 accept NIM standard slow positive logic signals. The counter section also accepts NIM standard fast negative input logic pulses. The input count rate is guaranteed to be 25 MHz and the pulse pair resolution is 40 ns. Each counter has an overflow output pulse to indicate that the 8-digit decimal capacity of either counter has been exceeded.

    Presets are accomplished by two front panel buttons labeled INC M and INC N. The information displayed includes two numeric characters indicating the current selection of M and N values. You can choose any value between 0 and 9 for M and 0 and 7 for N, giving you a preset capability of 1 to 9 X 107. The time base selection button allows the operator to choose whether to set the time base to 0.1 second intervals or 1 minute intervals, or to select whether to obtain the time base from an external source. The time display includes a decimal point to facilitate direct reading in seconds or minutes.

    For applications where multiple counts are to be preset and the time required to reach the preset count is required, pulses can be provided from the internal time base at 0.1 second intervals to the non-presettable portion of the instrument and use the presettable portion as the counter.

    Other applications include using the Type 871 as a ratio counter by providing pulses from an external source to the presettable part as well as the non-presettable counter and setting the preset part to 100 to obtain a ratio relationship between the two external sources.

    The dwell control can be rotated to select a delay from <1 second to approximately 15 seconds after preset conditions. During the delay, the contents of the counter can be read. At the end of the dwell interval, the instrument resets and immediately begins another counting interval.

  • Specifications +


    Performance

    Counting capacity

    Both parts are eight-digit decimal.

    Count rate

    guarantee two parts25 MHz。

    clock

    0.1-sand1-minIncrement comes from1-MHzcrystal oscillator; instability<±2 ppm/°C,0to50°C;Inaccuracy<±5 ppm;The clock register is controlled by the counting gate.

    Pulse pair resolution

    smallest40 ns。

    automatic reset

    Generated when power is applied.


    Controls and lights

    counter/Timer display

    8characters, per character7segmentLED, plus a decimal point.

    Timer preset

    2characters, each character7segmentLED。

    door

    When the device is in counting condition,LEDwill light up.

    OVFL

    When the displayed counter or timer overflows,LEDwill light up.

    counter

    When displaying counter dataLEDwill light up.

    timer

    When displaying timer dataLEDwill light up.

    0.1seconds

    The time base is0.1secondsLEDwill light up.

    points

    The time base is1minutesLEDwill light up.

    EXT

    When the timer section starts counting pulses input through the rear panel connector,LEDwill light up.

    test

    The push button switch will light up all the characters in each numeric character in the display7segments; when the button is pressed, the characters read8。

    Select

    The push button switch in the front panel display section switches the count of the display register (counter or timer).

    INC M

    button is used to select the number of effective digits of the preset value, where the preset= M X 10NXtime base. Each time it is pressed, this switch increments theMvalue.M = 0Indicates that the default is off;M = 9Yes
    value.

    INC N

    button is used to set theNvalue selection10of power. Each time it is pressed, this switch increments theNvalue.Ncan be0Arrive7any number in between.

    Time base selection

    A front-panel push-button switch in the timer section selects the count source for the instrument's timer section, and the rear-panel timebase connector selects the output source. When this switch is pressed, there are three possible choices.

    stay

    Single turn control, switch is off when turned counterclockwise. Turning off disables recirculation for the preset count interval. Turn the control clockwise to enable recirculation after a dwell time between count intervals of approx.0.3to15Adjust between seconds.

    stop

    The push-button switch will stop counting in both parts of the instrument.

    reset

    The push-button switch is used to reset the internal registers for both counting sections of the instrument and the time base register, and to turn offOVFLindicator light.

    count

    Push-button switches enable counting conditions for both parts of the instrument, but only if the timer is not at a preset level and the gate input does not fall below+1.5 V。


    Input

    Counter positive

    Front and rear panelsBNCConnector; accepts up to ±10 VLinear (±25 V) for positive or bipolar signals; the threshold is set to+1.5 V;Minimum pulse width is above threshold20 ns。Zin =1kΩ to ground, DC coupled.

    Counter negative

    front panelBNCConnector acceptsNIMStandard fast negative logic pulse,16 mAArrive50Ω; the threshold is set at-250 mV;Minimum pulse width exceeds threshold4 ns;The duty cycle is10%, the input is protected to ±25 V。

    EXTtimer

    rear panelBNCConnector; accepts up to ±10 VLinear (±25 V) of a positive unipolar or bipolar signal, if the time base selection is set toEXT, these pulses are counted in the timer part of the instrument; the threshold is set to+1.5 V;Minimum pulse width is above threshold20 ns。Zin =1kΩ to ground, DC coupled. UseExttimer input and preset operation, for25 MHzoperation, the minimum setting isM = 1andN = 1。

    door

    rear panelBNCacceptNIMStandard slow positive logic or DC levels to control the input gates of both counting sections;>+3 Vor open circuit allows counting;<+1.5 VCounting is prohibited;25 V;The driving source must be able to absorb the0.5 mAPositive current.

    count

    rear panelBNCacceptNIMStandard slow positive logic signal to remotely initiate counting conditions;>100 nstime>+3 VCounting conditions can be started;25 V。Zin =6 kΩ to ground, DC coupled.

    reset

    rear panelBNCacceptNIMStandard slow positive logic signal to remotely reset both counting sections and the time base register to zero;>+3 Vfor reset;<+1.5 VOr the circuit is open and does not reset;25 V;Pulse width> 100 ns。Zin =6 kΩ to ground, DC coupled.

    timer overflow

    When the timer part occurs every time99,999,999Arrive0On overflow, aNIMStandard slow positive logic pulse. nominal+5 V,500 nswide, pass<10 Ω, DC coupled.

    Counter overflow

    When the counter part occurs every time99,999,999Arrive0On overflow, aNIMStandard slow positive logic pulse. nominal+5 V,500 nswide, pass<10 Ω, DC coupled.


    electrical and mechanical

    Required power supply

    +12 V, 280 mA; -12 V, 117 mA; +24 V, 161 mA; 110 V, 40 mA。

    weight

    Net weight 1.5Kilogram (3.5pounds).Shipping weight 2.7Kilogram (6.0pounds).

    Size

    NIMStandard double wide module,6.90 x 22.13cm (2.70 x 8.714inches) front panel,
    conform toDOE/ER-0457Trequirements.


  • Ordering information +


    Model

    Description

    871

    Timers and counters (non-printing)
