806 products
View product
Product model: Brief description: 1. Detect CT spatial uniformity (noise). 2. Made of tissue-equivalent materials, filled with pure water when in use. Used to measure the CT value of the CT machine. When using, the water phantom should be placed on the bracket so that it is perpendicular to the beam.
View product
Product model: Brief description: The solid water phantom is fast and simple, and can replace the traditional water tank for routine detection of linear accelerator photon beams. The unique product characteristics allow each Water to be tested for water equivalence in an independent calibration laboratory before being put into use. The phantom pieces produced from this special material are strong enough and will not stick together when stacked and stored. Changes in temperature and humidity have no effect on the water. A cavity sheet design that accommodates parallel plate ionization chambers or finger ionization chambers.
View product
Product model: Brief description: American Phantom Laboratory CT performance testing phantom Catphan 600 can complete performance evaluation and quality assurance of axial CT scanning and spiral imaging systems. Catphan 600 has a new CTP591 module based on the original 500. This module includes 2 sets of precision slashes, which provides us with the conditions to evaluate millimeter and sub-millimeter level layer thickness. The improved CTP400 module adds more material samples. This allows us to more comprehensively evaluate CT linear values. For more detailed parameter differences, please ask the general agent Shanghai Nayou.
View product
Product model: Brief description: American Phantom Laboratory CT performance testing phantom Catphan 500+plus can complete performance evaluation and quality assurance of axial CT scanning and spiral imaging systems. Catphan 500+plus adds a real water module to the original 500, which solves the problem of the large difference between the measured value and the real value caused by the original solid water module.
View product
Product model: Brief description: American Phantom Laboratory CT performance testing phantom Catphan 500 has been recognized by well-known CT manufacturing companies, and they all use it to mark the imaging performance of CT machines. This phantom has many advantages over the water-filled phantom produced and processed based on AAPM Report No. 1 of 1977: Because it is a solid phantom, there is no water leakage problem; the storage box can be used as a phantom support, and the phantom can be extended out of the scanning bed; the low-contrast resolution phantom is made of the same material with different densities, etc.
View product
Product model: Brief description: CT quality control performance testing phantom: ① The phantom meets the requirements of national standards and can measure: CT linearity, layer thickness, positioning light accuracy, low contrast detectability, high contrast resolution, water CT value, uniformity and noise, inner diameter ≥ 20cm ② CT value linear materials include: air, polyethylene, plexiglass, polytetrafluoroethylene; ③ The angle between the tungsten wire of the layer thickness measurement unit and the straight line at the upper and lower ends of the component is ≥ 26.6°;
View product
Product model: Brief description: CT low contrast module: a series of cylindrical rods of various diameters and 12 contrasts used to measure low contrast performance. The 40mm long rod provides consistent contrast values at all z-axis positions, thus avoiding any volume averaging errors when scanning sections. Unique secondary test objects enable evaluation of different scanning protocols
View product

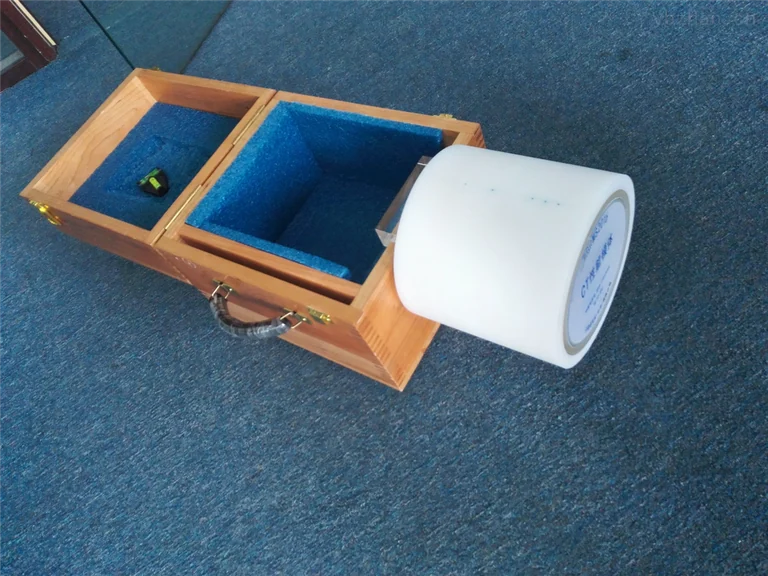

Product model: Brief description: RGRMS-2016 CT imaging performance testing phantom (hereinafter referred to as RGRMS phantom) is a new type of testing and evaluation equipment developed for medical CT image quality control management. The phantom can standardize, quickly and accurately detect and evaluate the imaging performance of multi-row CT scanning systems.
View product

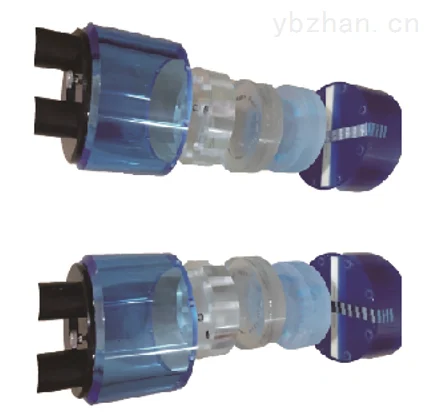

Product Model: Brief Description: The CTP700 Performance Phantom is designed for use with state-of-the-art CT scanners and research requiring advanced phantoms to measure their full potential. The Phantom retains many of the tests and features offered on other Catphan models, including the CTP515 low-contrast module and integrated chassis mounting system.
View product
Product Model: Brief Description: CT Performance Phantom CTP500 Model The functions of the CTP500 model enable optimal performance characterization of multi-slice CT and enhanced sensitivity measurement required for radiotherapy. The Catphan° 600 features enhanced measurement capabilities for precise measurement of thin sections and higher resolution in multi-slice scanners.
View product

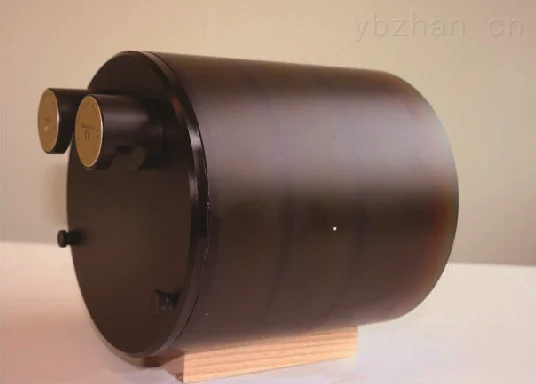

Product Model: Brief Description: CCT189 Low Contrast Body Phantom The CCT189 Phantom has eight contrast rods. The four contrast rods are 40mm long, and each of these rods has a different diameter and nominal contrast ratio. Samples from each batch of selected contrast rods are tested with multiple scans on our in-house CT scanner. Scans of the contrast rod are analyzed through automated analysis. And these contrasts are measured as intrinsic. For a more precise assessment of your phantom.
View product

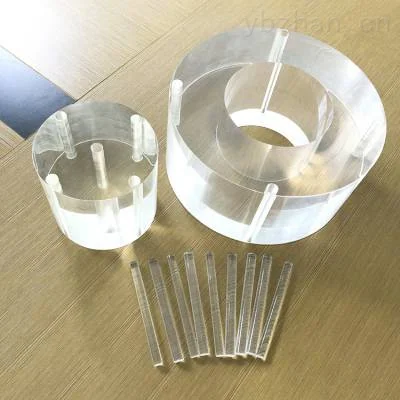

Product model: Brief description: CT head and body dose phantom can be used with any computed tomography (CT) system designed for head and body imaging. The phantom recognizes dose information for the head and body. This dose phantom allows the user to collect information for determining the maximum, minimum, and intermediate values of normal tomographic surface thickness when performing dose distribution measurements.
View product
Product model: Brief description: PMMA dose phantom Serial number: VD1003110 Used to measure CT dose index according to IEC 60601-2-44, IEC 61223-2-5 (DIN EN 60601-2-44, DIN EN 61223-2-6) standards.
View product
Product Model: KR101 Brief Description: The CT dose detection phantom can be used with any computed tomography (CT) system designed for head and body imaging. The phantom recognizes dose information for the head and body. This dose phantom allows the user to collect information for determining the maximum, minimum, and intermediate values of normal tomographic surface thickness when performing dose distribution measurements.
View product
Product model: Brief description: Double wire image quality meter (Germany) is produced according to ISO19232-5/EN462-5/ASTM E2002 standard, ISO19232-5/EN462-5/ASTM E2002 The double-wire image quality meter is composed of 13 wire pairs placed in a rigid translucent plastic box. The diameter of the double-wire image quality meter wire is equal to the distance between the wires. Each wire pair contains two wires with a circular cross-section. Pairs 1D to 3D are tungsten and the other pairs are platinum. The Dual Filament Image Quality Meter is used to determine the geometric unsharpness of radiographic and real-time radiography systems.
View product
Product model: Brief description: Introduction to the dual-wire image quality meter. The style and main dimensions of the dual-wire image quality meter are shown in Figure 1. The basic structure includes: packaging plate, 13 wire pairs, and identification numbers. Each part is bonded to form a rigid whole. The wires are made of platinum and tungsten.
View product

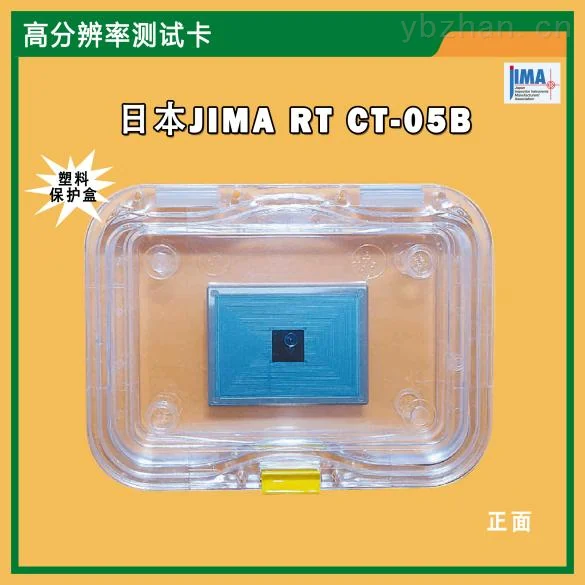

Product model: Brief description: JIMA (Japan Inspection Instrument Manufacturers Association) is committed to focusing on various inspection instruments, including non-destructive testing instruments, JIMA resolution test cards, which are used to measure the resolution of X-ray systems to ensure the image quality of X-ray systems at micron and nanofocus.
View product
Product model: Brief description: Advanced micron technology enables high-precision line pair resolution test cards with 16 different widths (3 to 50μm). Today, microfocus is the dominant X-ray beam size, and resolution test charts are an essential tool for adjusting, setting up, inspecting, and maintaining X-ray systems.
View product
Product model: Brief description: Product introduction German IBA type81 line-to-card type line-to-card is mainly used to test the high resolution of X-ray machines. Measuring range: 0.6-10.0LP/MM, number of groups: 26. The lead foil thickness is 0.1mmPb and 0.05mmPb, and the size is 65×55mm.
View product
Product model: Brief description: Product introduction Cross lead-inlaid scale meter ruler (lead ruler) KR019 is 30cm long, 3cm wide, 1mm scale spacing, and has lead-inlaid scales. 1 set of 2 lead rulers with plexiglass lead ruler box.
