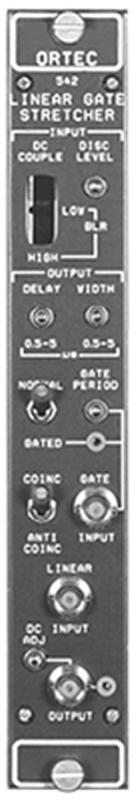

542 Linear Gates and Spreaders image

542 Linear Gates and Spreaders

Product model:

Brief description:For transmitting and blocking analog signals in the +0.1 to +10V range Ungated or gated with coincidence or anti-coherence gating Gated linear output

  • Manufacturer strength

    Manufacturer Strength
  • Valid warranty

    Valid Warranty
  • Quality assurance

    Quality Assurance

Products

PRODUCT CATEGORY

Detailed introduction

ORTEC 542 Linear Gate and Stretcher
  • For transmitting and blocking analog signals in the range +0.1 to +10 V
  • Coincident or anti-coincident gated Ungated or Gated
  • Gated linear output with internal or external gate pulse
  • Adjustable output delay and width

The ORTEC Model 542 Linear Gate and Stretcher accepts a linear input pulse through an input linear gate, stretches the peak amplitude of the input pulse, and produces an output pulse with an amplitude equal to the input, shaped to uniform rise time and width. Portable Isotope Neutron Spectroscopy (PINS) systems are already in use across the spectrum; increasingly used as part of national measures. It can be used to select and suppress linear signals based on selected coincidence or timing conditions. The Model 542 has excellent temperature stability, integral linearity, ease of operation and excellent response to high count rates. Additionally, the linear gate section is fully DC coupled with virtually zero base and feedthrough.
  • information +

    • Download link 542 Brochure
    • Download link 542 Brochure (A4)
    • Download link 542 Manual
  • More information +


    Each linear input pulse must exceed the adjustable discriminator level to produce an output pulse. The linear output pulse has a fixed rise time, 100:1 dynamic range, adjustable width, and is delayed by an adjustable interval (0.5-5μs) after the linear input pulse peak. In coincidence or anti-coherence mode, the input linear gate can be disabled or enabled for an adjustable gating period following the gate input logic pulse. A switch-selectable external gating input allows the output to be gated at an adjustable interval (5-50µs) after the input pulse peak. A slide switch on the front panel allows selection between three input connection methods: DC coupled, BLR low or BLR high. These characteristics make the Type 542 suitable for installation directly after a linear amplifier in a system.

    The pulse from the busy output on the rear panel indicates the duration from the peak of the line input pulse to the end of the output pulse (set by the pulse width control), or the duration from the line input pulse to the reset of the input discriminator, whichever is longer. This output can be counted in a scaler to indicate how many pulses the system is delivering, or it can be integrated to indicate relative dead time.

  • Specifications +


    Performance

    noise contribution

    <20 μV rms, reduced to the input end.

    gate feedthrough

    smaller than the signal amplitude when the door is closed0.005%。

    door base

    Basically zero, factory calibrated.

    Stretator sagging

    Usually<0.1 mV/ µs/Voutput.

    Pile up and discard

    After the input pulse reaches its peak value, subsequent inputs are rejected until the output pulse terminates and the input returns to baseline.

    Gain

    Consistent (nominal value).

    integral nonlinearity

    Pulse rise time> 100 nsand pulse width> 400 nsWhen, ≤±0.2%。

    temperature instability

    VO = 5 Vtime, from0to50°C, gain drift<±0.01%/°C。

    Count rate

    When DC coupled input is selected, it is always DC coupled. when from137Cssource - detector combination5×104count/seconds of random signal when modulated, full scale85The center of the pulse generator spectrum will shift at %<0.1%, peak at full scale70%(DCCoupling mode and amplifier shaping time τ=1 μs)。


    control

    Input

    • Slide switch front panel3Bit slide switches are used to select the desired input circuit:BLRhigh,BLRlow orDCcoupling.
    • Disclevel The front-panel screwdriver potentiometer adjusts the sensitivity level of the input discriminator; the range is+0.1to+1 V; When the input level exceeds the adjusted sensitivity, the discriminator remains triggered.

    Output

    • delay Front panel screwdriver potentiometer; adjusts delay time from peak detection to onset of output pulse; typically0.5to5 μs. (If there are special requirements, we can provide up to50 μsdelay range. )
    • Width The front panel screwdriver potentiometer is used to adjust the width of the output pulse; typical range is0.5to5 μs。

    Standard/Gating

    Front panel locking toggle switch provides option to exclude (standard) or include (gated) external gating functionality.

    gating period

    Front panel screwdriver potentiometer adjusts the duration of gate control from the leading edge of the gate input pulse; range0.5to5 μs, including test points for monitoring the adjusted gating period.

    Coinc/Anticoinc

    The front panel locking toggle switch is used to select the active mode for the input gate function.

    outputDC ADJ

    The front panel screwdriver potentiometer allows for ±1.5 Vadjust the output DC level.

    EXT/INT

    Rear panel locking toggle switch selects (external) gated operation or (internal) standard/Gating operation.


    Input

    door

    front panelBNCConnector for optional external control, suitable for switch selectable coincidence or anti-match mode triggering.NIMStandard slow logic pulses at+3 Vtriggers the selected gate function (minimum width is100 ns), protected to ±25 V。

    Linear

    front panelBNCconnector.
    • polarity Positive unipolar or bipolar, mainly the positive part.
    • Amplitude +0.1to+10 VLinear; ±12 V。
    • rise time 100 nsto10 μs。
    • impedance ~1000 Ω。

    ExtGating

    rear panelBNCConnector for optional external control suitable for output pulse timing.NIMStandard slow positive logic pulses at+3 VThe strobe function is triggered when (the minimum width is100 ns), protected to ±25 V。


    Output

    Output

    front panelBNCConnector passesZo <1Ω provides a linear positive output pulse; the rise time is300 ns;Includes test points.
    • polarity Right.
    • Amplitude +0.1to+10 V, equal to the peak amplitude of the received linear input pulse.
    • delay Adjusted by front panel controls; range is post-peak detection0.5to5 μs。
    • Width Adjusted by front panel controls; range is0.5to5 μs。
    • impedance front panel<1Ω。
    • DC offset adjustment ±1.5 V。

    93Ω output

    rear panelBNCThe connector provides the same linear signal as the front panel output, but the output impedance is93Ω。

    busy

    rear panelBNCDuring all cycles in which the connector cannot accept input pulses, theZo <10Ω provides+5 VNominal voltage; can be used to control external devices or monitor internally created dead time.
    • busy nominal+5 V, cannot accept linear pulses.
    • Not busy nominal0 V, can accept linear pulses.















    electrical and mechanical

    Required power supply

    542model from standardNIMChassis/Power Get power. The required power supply is+24 V,83 mA; -24 V,80 mA; +12 V,130 mA; -12V,30 mA。

    weight

    Net weight0.9Kilogram (2.0pounds). Shipping weight 1.9Kilogram (4.0pounds).

    Size

    NIMStandard single width module,3.43 x 22.13cm (1.35 x 8.714inches), consistent withDOE/ER-0457Trequirements.








  • Ordering information +


    Model

    Description

    542

    Linear gates and spreaders
