426 linear door

Product model:

Brief description:Designed to transmit and block analog signals in the +0.2 to +10V range Non-gated or gated with coincidence or anti-coherence gating External or internal control of gate pulse width The ORTEC Model 426 linear gate provides variable gate duration, the width of which is controlled by a single-turn potentiometer mounted on the front panel

Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance

Product consultation

Contact

Products

PRODUCT CATEGORY

Detailed introduction

For transmitting and blocking analog signals in the range +0.2 to +10 V
Coincident or anti-coincident gated Ungated or Gated
External or internal control of gate pulse width

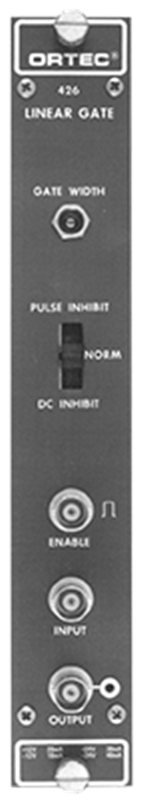

The ORTEC Model 426 Linear Gate offers variable gate duration and its width is controlled by a front panel mounted single turn potentiometer.

information +
- 426 Brochure
- 426 Brochure (A4)
- 426 Manual
More information +

Nominal gate duration is 0.3 to 4 μs. The operation of the linear gate is controlled by a positive start pulse. It can be used to select or suppress linear signals based on selected compliance or timing requirements.

ORTEC model 426 has two operating modes: all input signals without start pulses are blocked, or without inhibiting signals, all signals are passed. The suppression signal can be fed to the front panel "Enable" connector for pulse suppression operation or to the "DC Suppression" connector for DC or continuous suppression operation. DC rejection mode provides external control of the gating period.

Specifications +

Performance

Gain	unit.
integral nonlinearity	from0.2Arrive10 V <±0.15%。
pulse feedthrough	10 VWhen inputting pulses<10 mV。
temperature instability	<±0.015%/°C，0to50°C。
Count rate	4 VThe gain drift of the reference pulse is<0.25%, where the extra count rate is applied65,000count/seconds6 VRandom pulses.

control

door width	from0.3Arrive4 μsContinuous changes.
Output base	Adjustable to<1 mV。
pulse suppression/ Standard/ DC suppression	3A bit mode switch selects the functionality of any pulse or DC level available from the front panel Start Input connector or the rear panel DC Reject connector. • Standard During the gate width interval following the leading edge of each start input pulse, the input pulse will be gated to output. • pulse suppression During the gate width interval following each enable input pulse, the input pulse will be inhibited from passing through the output. • DC suppression During intervals between pulses or DC levels, the rear panel DC suppression connector will inhibit input pulses from passing through the output.

Input

Linear Input	Unipolar or bipolar, mainly the positive part. Rated range0.2to10 V，12 V. Input impedance> 5000 Ω；BNCconnector. The input is AC coupled to a passive symmetrical baseline restorer.BLRDC coupling can be bypassed.
Enable or disable input	any positive input> 2 V, input20 V. Starting impedance1000 Ω, DC coupling; suppression impedance650 Ω, DC coupled; use eachBNCconnector.

Output

The rated output range is0.2to10 Vpositive pole;12 V. Output impedance ~2 Ω, DC coupling, short circuit protection;BNCconnector.

electrical and mechanical

Required power supply	426type by standardNIMPower box/Mains power supply. The required power supply is+24 V，30 mA; -24 V，49 mA; +12 V，16 mA; -12V，4.9 mA。
weight	Net weight 0.96Kilogram (2.1pounds)Shipping weight1.82Kilogram (4.0pounds).
Size	NIMStandard single width module,3.43 x 22.13cm (1.35 x 8.714inches), conform toDOE/ER-0457Trequirements.

Ordering information +

Model

Description

426

linear door
