ContactThe 978 generates NIM and ECL pulses with widths ranging from 50 ns to 10 s when triggered. Output pulses are provided in normal and complementary formats. An end-of-pulse marker output signal is provided that can be used to retrigger the timer in repeating mode. Triggering START can be provided by an external signal or manually via a front panel switch. The veto input can be used as a disable gate for the enable input signal. Coarse adjustment of the output width can be performed with a 10-position rotary switch, while fine adjustment can be achieved with a knob. Two timers can be cascaded to form a pulse generator with variable width and frequency. Overall accuracy is 10% of full scale plus a temperature coefficient of 0.1% per °C.
978 dual timer
Product model:
Brief description:Two identical trigger pulse generators in a single-width NIM module Manual or pulse trigger start NIM and ECL output widths from 50ns to 10s End mark output Can be used as a variable width and frequency pulse generator when two sections are cascaded The ORTEC978 dual timer is a single-width NIM module with two identical flexible trigger pulse generators built in
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Products
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- Surface Contamination Detector Supplier Screening Guide: Key Points to Consider from Qualifications to Services
- Application scenarios for low-contrast detail detection phantoms
- When choosing an explosion-proof radiation measuring instrument suitable for your own use, you need to consider these aspects
- Application of X-ray machine comprehensive tester in medical equipment upgrading and transformation
- Long pole radiation meter is an important radiation monitoring tool
- Online radiation alarm is an indispensable part of the modern radiation safety management system
- Basic requirements for maintenance and upkeep of X-ray machine comprehensive tester
- How does the German IBA line card evaluate the resolution capability of the X-ray machine?
- Low contrast detail detection phantom丨Product Encyclopedia
- A thermoluminescence dosimeter is an analytical device used to measure radiation dose
Detailed introduction
- Two identical trigger pulse generators in a single-width NIM module
- Manual or pulse trigger start
- NIM and ECL output widths from 50 ns to 10 s
- End mark output
- Can be used as a variable width and frequency pulse generator when the two sections are cascaded

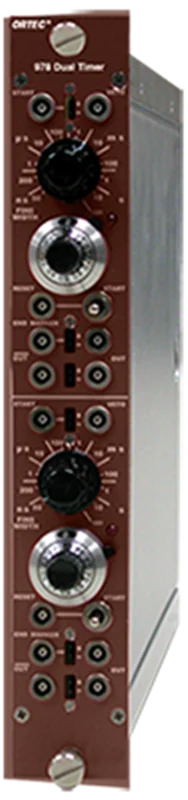

The ORTEC 978 Dual Timer is a single-width NIM module that houses two identical flexible trigger pulse generators.
