HV Bias/NIM Power Supplies and Power Enclosures

ORTECforNIMThe instrument provides two types of power supplies: a power supply that provides the operating voltage for the detector (more appropriately called the detector bias power supply or "HV” power supply) and related power suppliesNIMThe form of "power supply chassis" isNIMModular electronic instruments provide power supplies with the necessary operating voltages.

allORTEC NIMAll plug-ins comply with1990year5revised monthlyNIMStandard (formerlyTID 20893(revised version) andNIM/GPIB). See United StatesNIMcommittee1990year5monthDOE/ER-0457T;Virginia22161, Springfield, USA,NTIS, standardNIMInstrument system

Click here to download our guide on how to chooseHVbias supply andNIMA beginner's guide to power boxes.

To assist you further, you canDownload a specs comparison tableBuying Guide。

HVbias voltage/NIMPower supplies and power chassis models


428 detector bias power supply
556 and 556H high voltage power supplies
659 5 kV detector bias supply

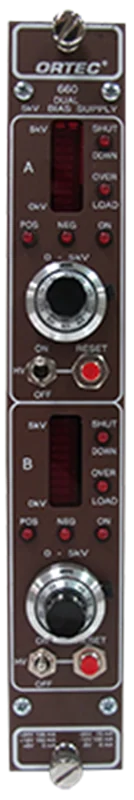

660 dual-channel 5 kV detector bias power supply
710 four-way 1kV bias power supply
4001A/4001C NIM power supply chassis
4002A 96W power supply for NIM power supply chassis
4002D 160W power supply for NIM power supply chassis
4002E BlackMax power supply for NIM power supply chassis
4002P portable power supply
4003 preamplifier power output
4006 Mini Power Supply Chassis and Power Supply
